| Attribute | Value |
|---|---|
| Input Signal | Electric |
| Position Control | Throttling Control, On/Off |
| Supply Media | Air, Natural Gas, Nitrogen |
| Max Outlet Pressure | 145 psig |
| Diagnostics | Yes |
| Communication Protocol | 4-20 mA HART |

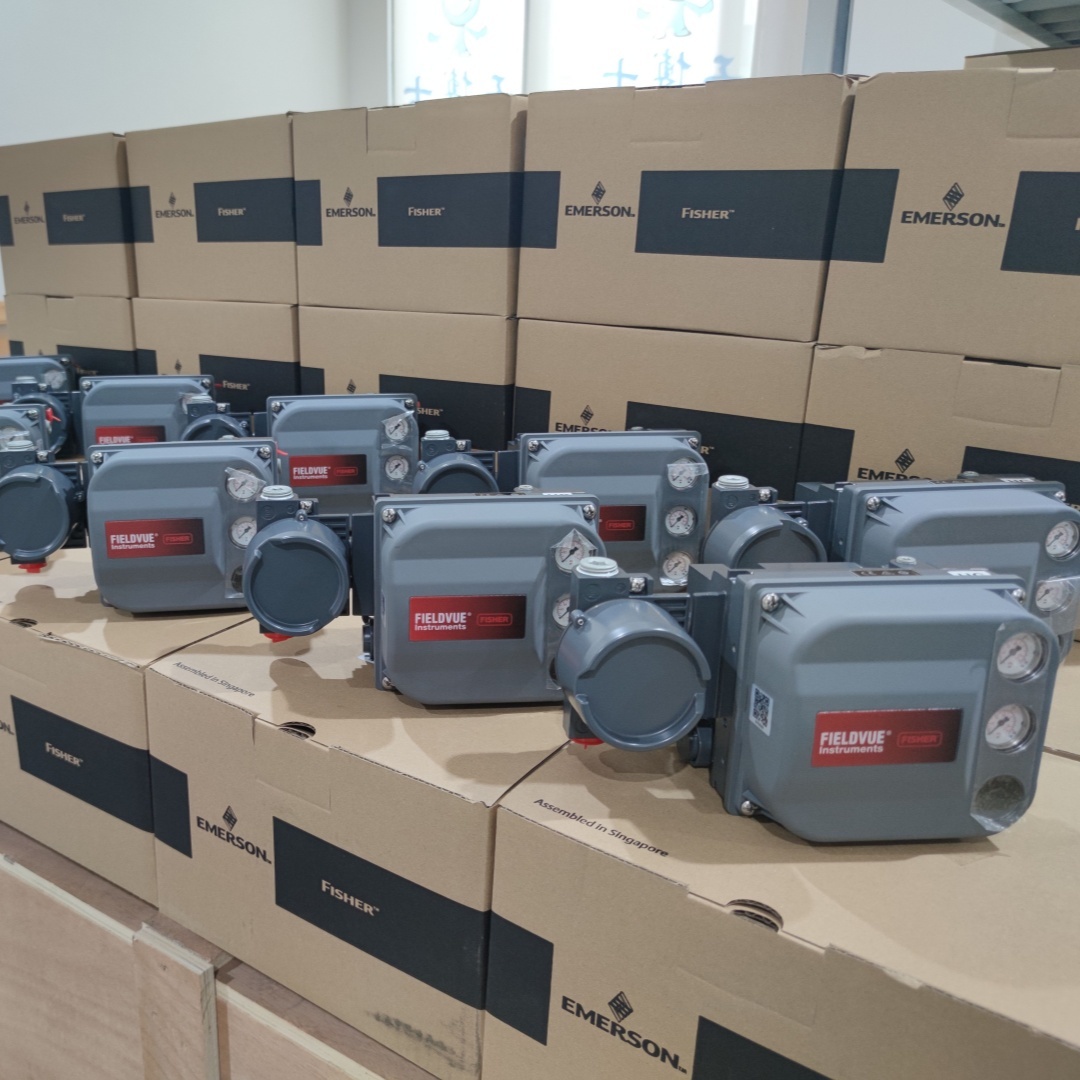

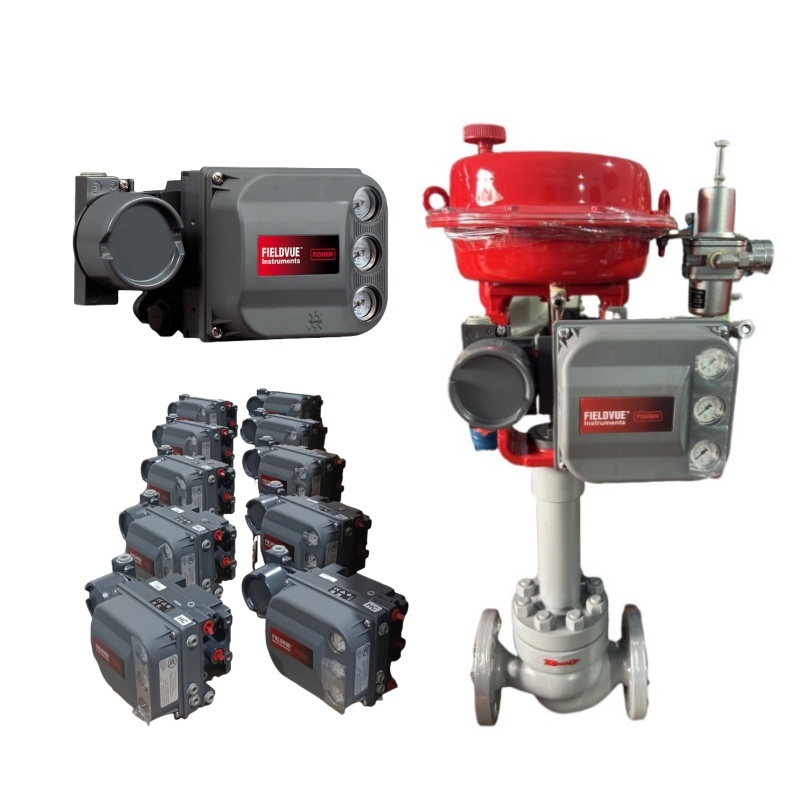

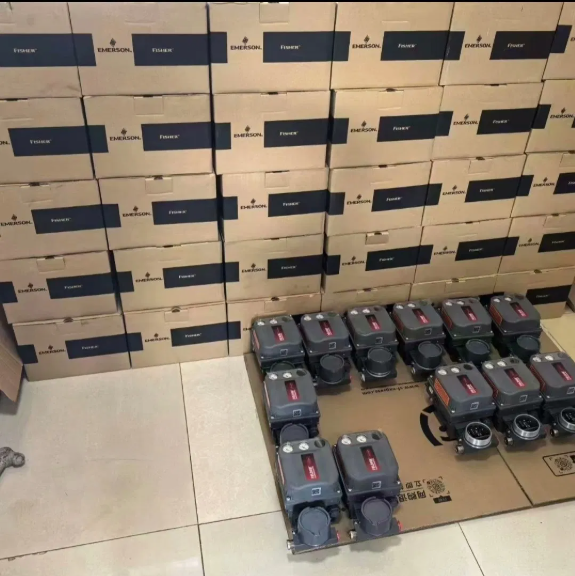

The Fisher FIELDVUE DVC6200 Digital Valve Controller is a HART-communicating, microprocessor-based instrument designed to convert 4-20 mA control signals into precise pneumatic outputs for actuator control. Engineered for reliability, it features non-contact position feedback, eliminating wear and tear, and operates seamlessly in harsh environments. Compatible with both sliding-stem and rotary actuators, it enhances process accuracy while reducing maintenance costs.
| Parameter | Specification |
|---|---|
| Input Signal | 4-20 mA HART (HART 5/7 compatible) |
| Output Signal | Pneumatic (up to 95% of supply pressure) |
| Supply Voltage | 9.5-30 VDC |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Protection Class | Explosion-proof, Intrinsic Safety, FISCO |
| Communication | HART 5/7 Protocol |
| Weight (Aluminum) | 3.5 kg (7.7 lbs) |
| Weight (Stainless) | 8.6 kg (19 lbs) |
| Mounting Type | Integral Mounted |
