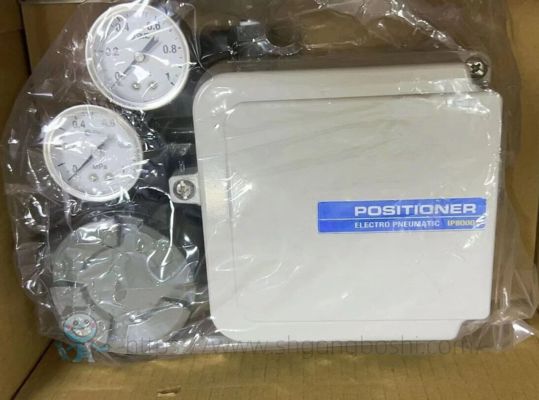

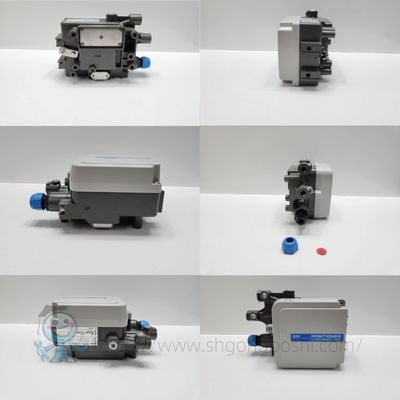

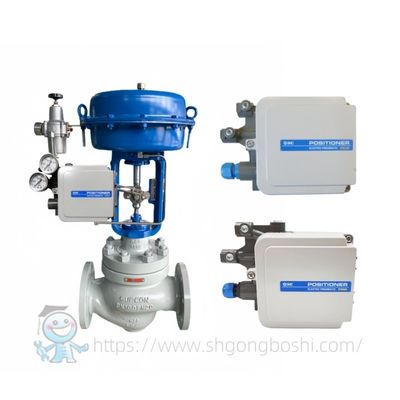

The SMC IP8000/IP8001 Lever Type Smart Valve Positioner integrates advanced electro-pneumatic control with energy-efficient design. Ideal for globe/gate valves, the IP8001 model features HART communication and LCD display for real-time monitoring. It reduces air consumption by 60% compared to traditional models, making it a cost-effective solution for industrial automation.
| Attribute | Value |
|---|---|
| Input Current | 4-20 mA DC (Standard) |
| Repeatability | Within ±0.5% F.S. |
| Output Flow | ≥ 80 L/min (ANR) at 0.14 MPa supply; ≥ 200 L/min at 0.4 MPa |
| Ambient & Fluid Temperature Range | -20 °C to 80 °C (non-hazardous areas) |
| Weight | approx. 2.4 kg |
| Ingress Protection | IP65 |
| Explosion-Proof Construction | Yes |
| Parameter | IP8000 | IP8001 |
|---|---|---|
| Input Current | 4-20mA DC | 4-20mA DC |
| Supply Air Pressure | 0.14-0.7 MPa | 0.14-0.7 MPa |
| Standard Stroke | 10-85mm (10-30°) | 10-85mm (10-30°) |
| Sensitivity | ≤0.1%F.S. | ≤0.2%F.S. |
| Linearity | ±0.1%F.S. | ±1%F.S. |
| Output Flow | 80L/min (ANR) | 80L/min (ANR) |
