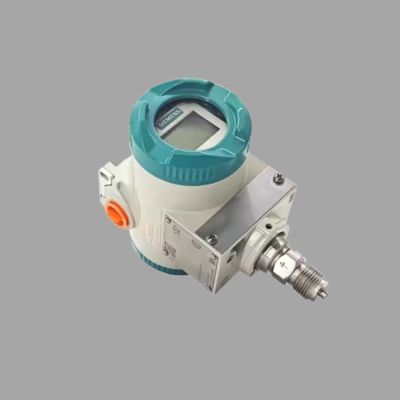

Siemens SITRANS P320 (7MF0300): A Compact and Intelligent Absolute Pressure Transmitter
The Siemens SITRANS P320 series, with the model 7MF0300 denoting a specific variant within this family, represents a modern, compact, and highly capable solution for absolute pressure measurement in a wide array of industrial processes. Designed with simplicity, reliability, and intelligence at its core, this transmitter is engineered to deliver precise and stable measurements in applications ranging from chemical and pharmaceutical manufacturing to food and beverage, water treatment, and HVAC systems. The 7MF0300 model exemplifies Siemens' commitment to providing versatile instrumentation that is easy to install, configure, and maintain, thereby reducing total cost of ownership.
Core Technology and Measuring Principle
The SITRANS P320 utilizes a state-of-the-art piezoresistive silicon sensor. This sensor technology is known for its high signal-to-noise ratio and excellent dynamic response. When pressure is applied to the silicon diaphragm, its electrical resistance changes proportionally due to the piezoresistive effect. This minute change is detected by the integrated microprocessor, which processes the signal, applies sophisticated temperature and linearity corrections, and converts it into a standardized output. The 7MF0300, as an absolute pressure transmitter, measures pressure relative to a perfect vacuum (zero pressure reference), making it ideal for applications where pressure must be monitored independent of atmospheric changes.
| Category | Details |
|---|---|
| Product Name | Siemens SITRANS P320 Absolute Pressure Transmitter |
| Model Variant | 7MF0300 |
| Series | SITRANS P320 |
| Type | Compact, intelligent Absolute Pressure Transmitter |
| Measuring Principle | Piezoresistive silicon sensor (measures pressure relative to a vacuum reference) |
| Accuracy | Up to ±0.25% of span |
| Stability | Excellent long-term stability; minimal drift, reduced recalibration needs |
| Response Time | Fast, suitable for dynamic processes |
| Output Signal | 4–20 mA with HART® (digital signal superimposed) |
| Electronics | Microprocessor-based signal processing with temperature & linearity corrections |
| User Interface | Large backlit LCD display, intuitive three-button Local User Interface (LUI) |
| Data Logging | Integrated data logger (up to 65,000 values with timestamps) |
| Communication | HART protocol, supports both analog infrastructures & digital asset management |
| Construction / Materials | Stainless steel process connections; lightweight, rugged enclosure |
| Protection Ratings | IP65, IP66, IP67 (depending on configuration) |
| Environmental Resistance | Resistant to moisture, dust, and corrosive atmospheres |
| Safety Compliance | SIL 2 (IEC 61508) |
| Hazardous Area Approvals | ATEX, IECEx (explosive atmosphere use) |
| Applications | Pressure measurement in vessels/pipelines, liquid level in tanks, filter/pump monitoring, leak testing |
| Industries | Chemical, Pharmaceutical, Food & Beverage, Water Treatment, HVAC |
| Benefits | Compact design, easy installation & configuration, integrated diagnostics, reduced total cost of ownership |
| Special Advantages | Built-in data logging, intuitive interface, flexible communication, robust environmental protection |
This advanced sensor and electronics package provides several key performance benefits:
High Accuracy: The device achieves impressive accuracy, typically up to ±0.25% of the selected span, ensuring reliable data for process control and monitoring.
Excellent Stability: The robust sensor design and advanced signal processing algorithms minimize long-term drift, guaranteeing consistent performance over extended periods and reducing the need for frequent recalibration.
Fast Response Time: The inherent design of the sensor allows it to react very quickly to changes in process pressure, which is critical for dynamic processes requiring tight control.
Design Features and Functionality
The SITRANS P320 (7MF0300) is housed in a compact, lightweight, yet rugged enclosure that is designed for easy handling and installation. Its design philosophy emphasizes user-friendliness without compromising on durability or performance.
Key features include:
Intuitive User Interface: The transmitter is equipped with a large, clear, backlit LCD display and a simple, intuitive three-button local user interface (LUI). This allows for easy on-site configuration, diagnostics, and troubleshooting without the need for any external tools or devices.
Integrated Data Logging: A standout feature is the built-in data logger function. It can record up to 65,000 measurement values along with time stamps, which is invaluable for process optimization, troubleshooting intermittent issues, and providing documentation for quality assurance purposes.
Flexible Communication: The transmitter supports the ubiquitous HART protocol (4...20 mA with superimposed digital signal), ensuring seamless integration into both existing analog wiring infrastructures and modern digital asset management systems. This allows for remote configuration and monitoring using handheld communicators or control system software.
Robust Construction: With a high-quality stainless steel process connection and a housing offering IP65, IP66, or IP67 degrees of protection, the transmitter is built to withstand harsh industrial environments, including exposure to moisture, dust, and corrosive atmospheres.
Safety and Certification: The SITRANS P320 is designed and certified according to international standards for safety (SIL 2 according to IEC 61508) and for use in potentially explosive atmospheres (ATEX, IECEx).
Applications
The Siemens SITRANS P320 7MF0300 absolute pressure transmitter is exceptionally versatile. Its common applications include:
Pressure Measurement in Closed Vessels: Monitoring and controlling pressure in tanks, reactors, and pipelines.
Liquid Level Measurement: Calculating the level of liquids in non-pressurized or closed tanks under varying process conditions.
Filter Monitoring: Indicating the clogging status of filters and pumps by measuring the pressure drop across them.
Leak Testing: Providing precise absolute pressure measurements for testing the integrity of sealed systems.
In summary, the Siemens SITRANS P320 (7MF0300) is a smart, compact, and highly reliable absolute pressure transmitter that combines advanced sensor technology with user-centric design. Its blend of accuracy, diagnostic capabilities like data logging, and flexible communication makes it a superior and future-proof choice for a vast spectrum of industrial pressure measurement tasks.
