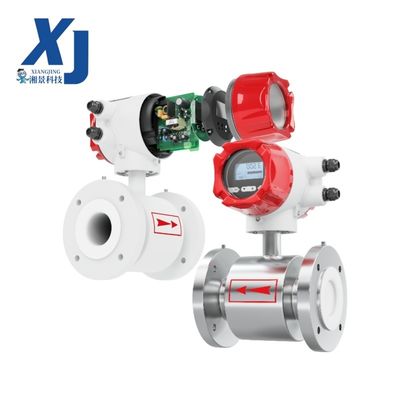

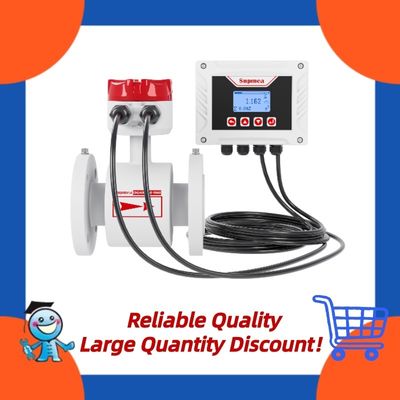

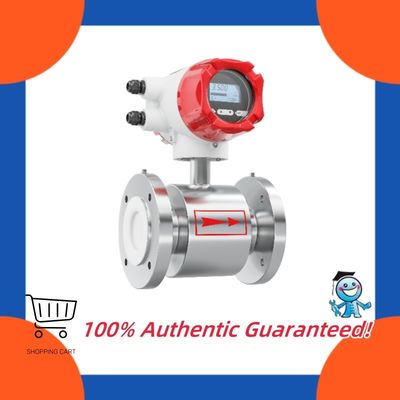

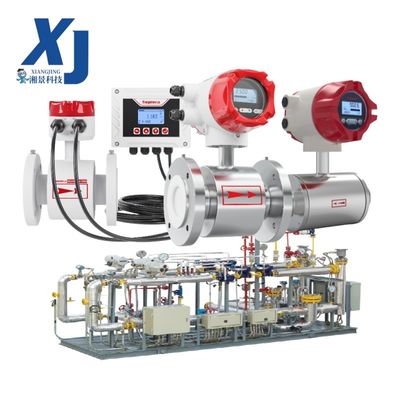

The Supmea LDG-SUP-A100 Electromagnetic Flowmeter is a rugged, high-accuracy device built for reliable flow measurement in industrial liquid processes. Employing electromagnetic induction, it offers non-obstructive detection for conductive fluids, ensuring minimal pressure drop and long-term stability. With IP67 protection and corrosion-resistant liners, the LDG-SUP-A100 is perfect for chemical, wastewater, and mining applications. Its versatile outputs (4-20 mA, HART, RS485) and wide pipe size range (DN10 to DN3000) enable easy integration, providing cost-effective, low-maintenance solutions for flow management.
| Parameter | Specification |
|---|---|
| Flow Range | 0.1 to 15 m/s |
| Accuracy | ±0.5% of reading (≥DN300: ±0.5% + 1 mm/s) |
| Repeatability | ±0.1% of reading |
| Size Range | DN10 to DN3000 (0.5" to 120") |
| Conductivity | ≥5 μS/cm |
| Liner Materials | PTFE, PFA, Hard Rubber, Polyurethane |
| Electrode Materials | 316L SS, Hastelloy C, Titanium, Tantalum |
| Output Signals | 4-20 mA HART, RS485, Pulse/Frequency |
| Power Supply | 24 VDC (16–36 V), 110/220 VAC (optional) |
| Temperature Range | Liner: -20°C to 120°C; Ambient: -20°C to 60°C |
| Pressure Rating | ANSI Class 150 to 600 |
| Enclosure Rating | IP67 |
| Certifications | CE, RoHS, Exd IIC T6 (optional) |
The Supmea LDG-SUP-A100 Electromagnetic Flowmeter is built for durable flow measurement in industrial settings:
No, it can be installed with minimal straight pipe, reducing installation costs.
Liquids must have ≥5 μS/cm conductivity for accurate readings.
Yes, hard rubber or polyurethane liners protect against abrasion.
It allows remote configuration and diagnostics, simplifying system management.
Yes, optional Exd IIC T6 certification ensures safe operation.
