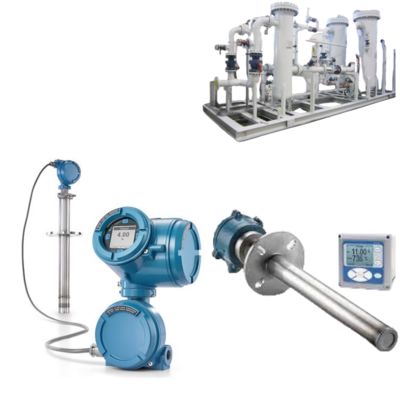

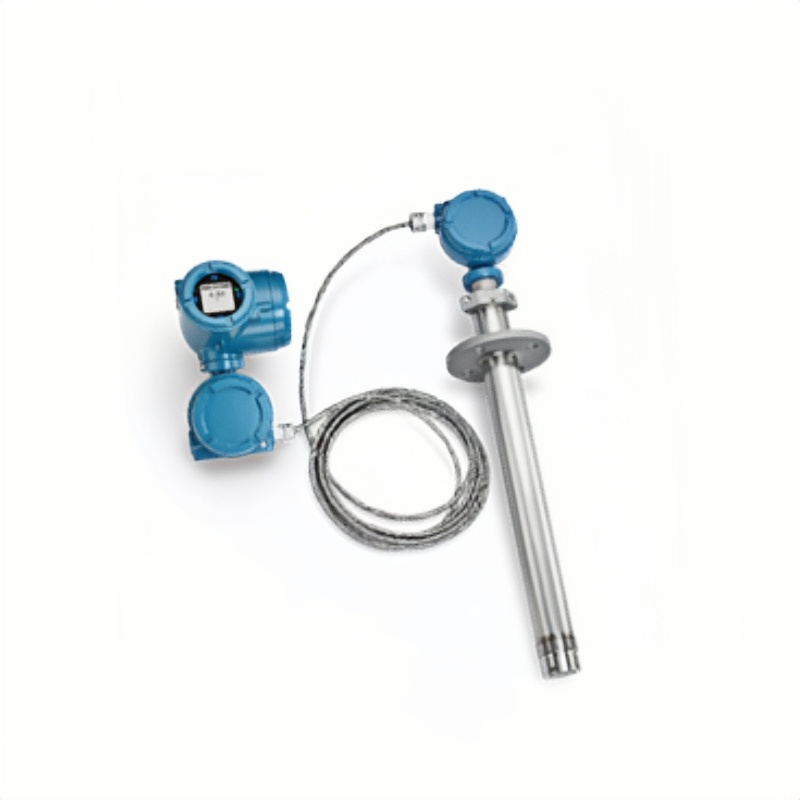

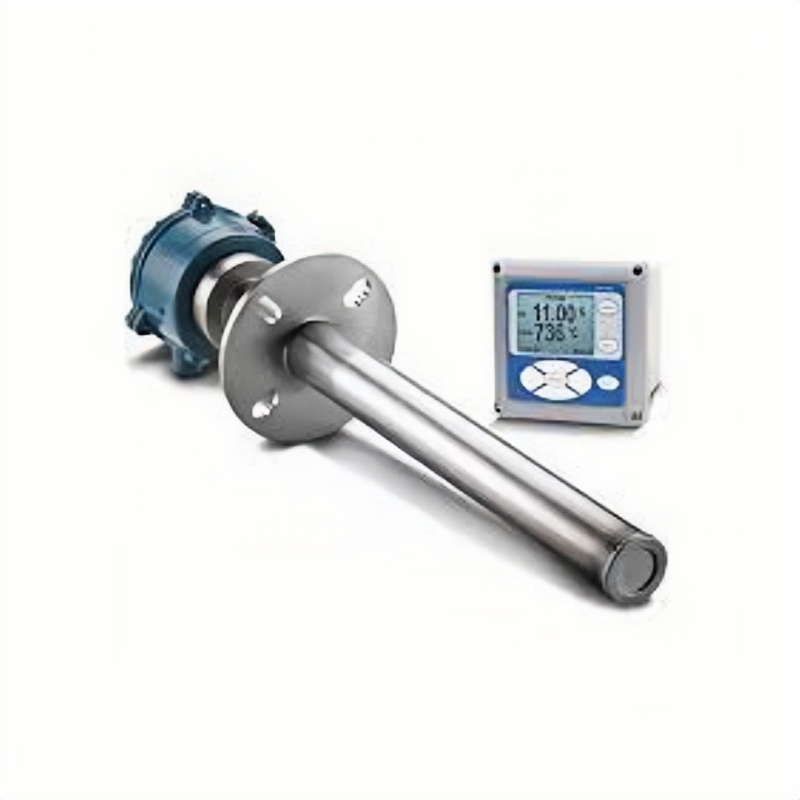

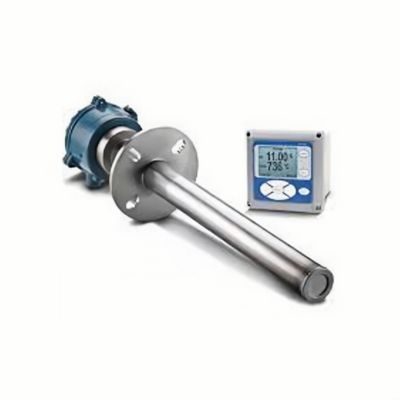

The Rosemount CX1100 In Situ Oxygen Analyzer from Emerson is an advanced process analyzer designed for direct, continuous oxygen measurement in flue gas applications. Featuring a zirconia-based sensing element, it delivers accurate, real-time oxygen readings to optimize combustion performance and maintain environmental compliance.
This robust and low-maintenance analyzer is ideal for industrial boilers, furnaces, and process heaters. By accurately monitoring oxygen concentration, it helps users maintain the optimal air-to-fuel ratio, significantly improving energy efficiency and reducing CO₂ emissions.
In Situ Measurement: Provides direct oxygen measurement without extractive sampling systems.
Zirconia Sensor Technology: Ensures precise and stable readings even in harsh process conditions.
Fast Response Time: Enables real-time process control and rapid adjustments.
Low Maintenance: Simplified probe design minimizes calibration and servicing requirements.
Wide Temperature Range: Suitable for various high-temperature combustion environments.
Digital Communication: Supports 4–20 mA analog and HART digital output.
Compact Design: Easy to install, operate, and integrate into existing control systems.
Long Service Life: Built for reliability in demanding industrial applications.
Measurement Range: 0–25% O₂
Measurement Principle: Zirconia oxide sensing element
Response Time: <5 seconds (typical)
Accuracy: ±0.75% of reading
Process Temperature: Up to 700°C (depending on probe type)
Output Signal: 4–20 mA with HART communication
Power Supply: 24 VDC / 230 VAC
Installation Type: In situ, flange-mounted probe
Enclosure Rating: IP65 or higher
Material: Stainless steel or aluminum alloy body
Power Generation: Oxygen control in coal, gas, or oil-fired boilers.
Petrochemical Industry: Furnace and process heater oxygen monitoring.
Cement and Glass Manufacturing: Combustion optimization for kilns and glass furnaces.
Steel Plants: Process gas analysis for reheating and annealing furnaces.
Pulp and Paper Industry: Boiler efficiency monitoring.
Waste Incineration: Emission control and oxygen regulation in flue gases.
Q1: What technology does the CX1100 use to measure oxygen?
A: It uses a zirconia oxide sensing cell that provides accurate and stable in situ oxygen readings.
Q2: Is the analyzer suitable for high-temperature applications?
A: Yes, the CX1100 is designed for continuous operation in process temperatures up to 700°C.
Q3: What are the main advantages of in situ oxygen measurement?
A: It eliminates the need for sampling systems, provides faster response, and reduces maintenance requirements.
Q4: How often should the CX1100 be calibrated?
A: Typically once or twice a year, depending on process conditions and operating environment.
Q5: What communication options are available?
A: The CX1100 supports both analog 4–20 mA output and HART digital communication.
For inquiries, pricing, or technical support, please contact:
Dr. Industry Group Co., Ltd
Phone: +86-15000725058
Email: edward.zhao@gongboshi.com
Website: www.shgongboshi.com
We are a professional supplier of Emerson Rosemount analytical instruments, offering fast delivery, complete technical support, and global after-sales service for industrial automation and process control applications.
