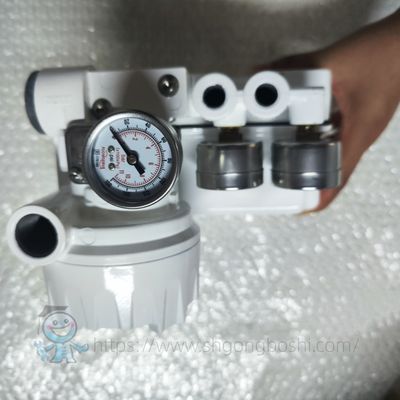

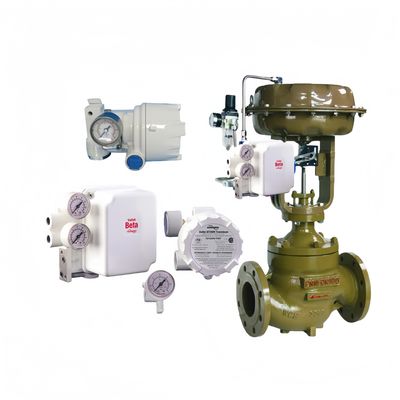

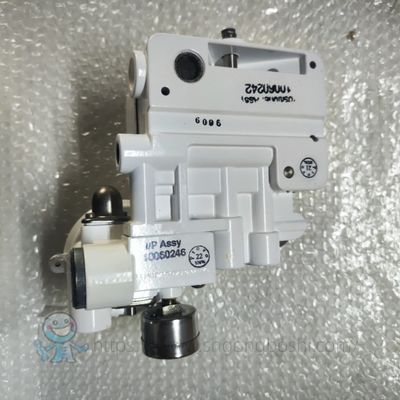

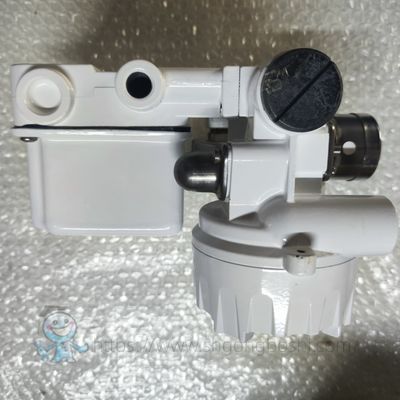

The Flowserve Valtek Beta Positioner with NT3000 Electro-Pneumatic Transducer is a high-performance solution for precise control of linear and rotary pneumatic valve actuators. The Beta positioner provides robust, field-reversible operation, while the NT3000 module converts 4-20 mA input signals to 3-15 psi pneumatic outputs with excellent linearity and repeatability. Designed for demanding industrial environments, this combination ensures reliable valve positioning with minimal air consumption and easy calibration. Ideal for oil and gas, chemical, and power applications, it offers seamless integration and long-term durability.
| Parameter | Specification |
|---|---|
| Input Signal | 4-20 mA |
| Output Signal | 3-15 psi |
| Air Supply Pressure | 30-150 psi |
| Linearity | ±1% of span |
| Hysteresis | ±0.5% of span |
| Temperature Range | -40°F to 180°F (-40°C to 82°C) |
| Enclosure | Aluminum |
| Power Consumption | <1 W |
| Certifications | ATEX, FM, CSA (optional) |
The Flowserve Valtek Beta Positioner with NT3000 is suited for precise valve control in industrial processes:
It converts electrical signals to pneumatic for actuator control.
Yes, for direct or reverse acting without modifications.
30-150 psi for reliable operation.
Simple zero and span adjustments.
Yes, robust aluminum housing.
For more information about the Flowserve Valtek Beta Positioner with NT3000, pricing, or to request a demo, contact our team:
