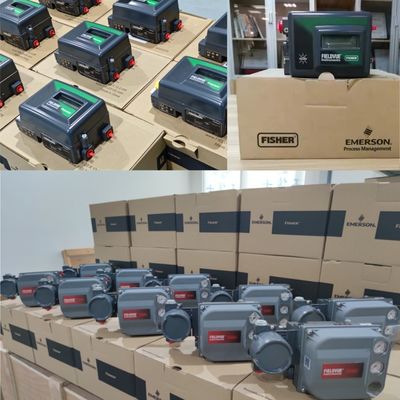

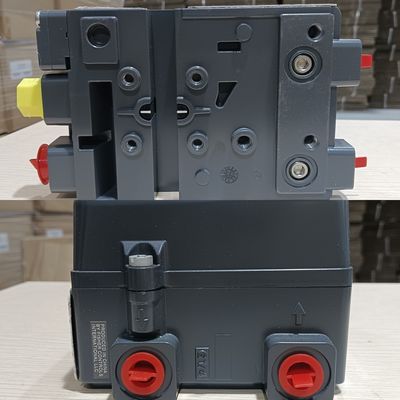

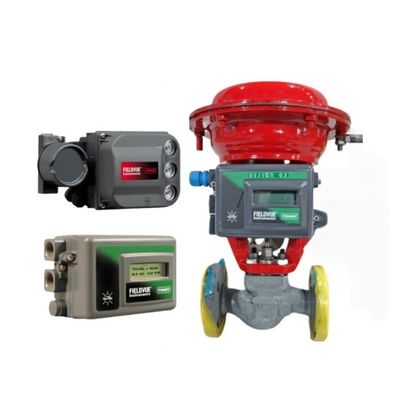

The Fisher DVC2000 Valve Positioner is a compact, microprocessor-based instrument that offers digital precision in valve control for space-constrained environments. Converting 4-20 mA input signals to pneumatic outputs, it ensures accurate positioning for linear and rotary actuators with a two-stage design for fast response and stability. Optional HART communication enables basic digital integration, while its lightweight construction and easy mounting make it ideal for upgrades. Certified for industrial use, the DVC2000 provides reliable, low-maintenance automation in chemical, oil and gas, and water treatment industries.
| Parameter | Specification |
|---|---|
| Input Signal | 4-20 mA (HART optional) |
| Supply Pressure | 1.4-8 bar (20-116 psig) |
| Output Signal | Pneumatic (3-15 psi) |
| Accuracy | ±0.75% of span |
| Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Enclosure Rating | IP66, NEMA 4X |
| Certifications | FM, CSA, ATEX (optional) |
| Actuator Compatibility | Linear and rotary, single/double-acting |
| Air Consumption | Low (optimized) |
| Weight | 1.8 kg (4 lbs) |
The Fisher DVC2000 Valve Positioner is ideal for compact valve automation in industrial processes:
Compact 1.8 kg design fits space-limited installations.
Optional for basic digital features.
Fast for small changes, stable for large ones.
Yes, handles valve sticking and deadband.
Yes, universal mounting for third-party actuators.
For more information about the Fisher DVC2000 Valve Positioner, pricing, or to request a demo, contact our team:
