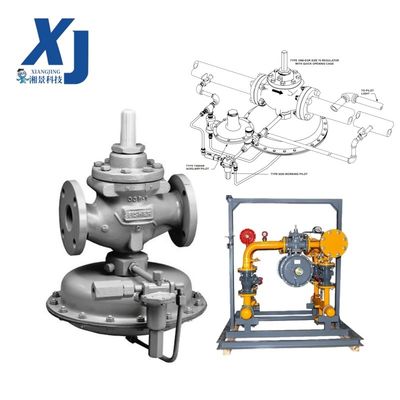

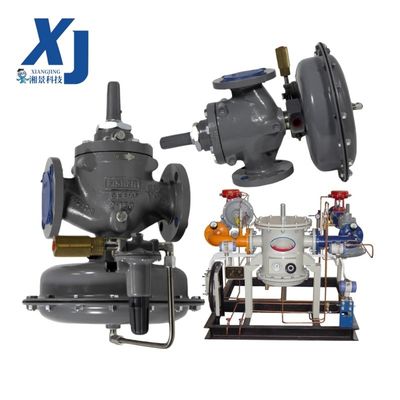

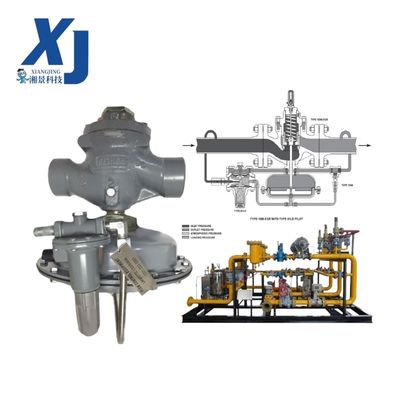

The Fisher 1098-EGR and 1098H-EGR Pressure Reducing Valves are robust, direct-operated regulators designed for reliable gas pressure reduction in industrial and commercial gas systems. The 1098-EGR features an internal relief valve for overpressure protection, while the 1098H-EGR offers high-pressure capability up to 150 psig. Both models provide stable control with minimal droop, making them essential for applications like gas distribution and appliance feeding. Their simple construction and wide sizing options ensure easy installation and long-term reliability in demanding environments.
| Parameter | 1098-EGR | 1098H-EGR |
|---|---|---|
| Body Sizes | 1/2" to 4" NPT | 1/2" to 4" NPT |
| Maximum Inlet Pressure | 125 psig (8.6 barg) | 150 psig (10.3 barg) |
| Outlet Pressure Range | 2-35 psig (0.14-2.4 barg) | 2-35 psig (0.14-2.4 barg) |
| Flow Capacity | Up to 15,000 SCFH | Up to 15,000 SCFH |
| Body Material | Cast Iron | Cast Iron |
| Temperature Range | -20°F to 150°F (-29°C to 66°C) | -20°F to 150°F (-29°C to 66°C) |
| Certifications | CSA | CSA |
The Fisher 1098-EGR and 1098H-EGR Pressure Reducing Valves are optimized for gas pressure control in industrial and commercial systems:
EGR has internal relief; H-EGR handles higher inlet pressures.
Yes, for quick, reliable regulation.
Up to 15,000 SCFH for high capacity.
Yes, natural gas, propane, and mixtures.
Yes, simple design requires minimal servicing.
For more information about the Fisher 1098-EGR and 1098H-EGR Pressure Reducing Valves, pricing, or to request a demo, contact our team:
