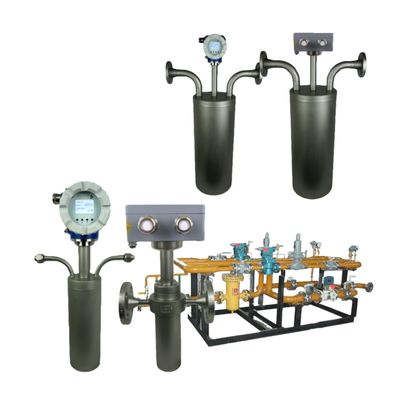

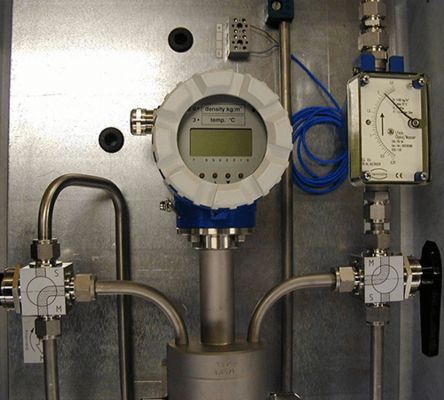

The Bopp & Reuther Density Concentration Meter is a precision inline instrument designed for accurate measurement of liquid density and concentration in industrial processes. Utilizing oscillating U-tube technology, it provides real-time data with ±0.0001 g/cm³ resolution, enabling tight control of product quality and efficiency. With a robust stainless steel construction and integrated temperature compensation, the meter is ideal for continuous monitoring in pipelines, supporting viscosities up to 20,000 mPa·s. Certified for hazardous areas, it ensures reliable performance in chemical, food, and pharmaceutical applications.
| Parameter | Specification |
|---|---|
| Measuring Principle | Oscillating U-Tube |
| Density Range | 0.5 to 3 g/cm³ |
| Accuracy | ±0.0001 g/cm³ |
| Repeatability | ±0.00005 g/cm³ |
| Temperature Range | -40°C to +200°C |
| Pressure Rating | Up to 100 bar |
| Viscosity Range | Up to 20,000 mPa·s |
| Output Signals | 4-20 mA, HART, Profibus |
| Certifications | ATEX, IECEx |
Oscillating U-tube for precise density.
±0.0001 g/cm³ resolution.
Yes, up to 20,000 mPa·s.
Yes, automatic for accuracy.
Yes, ATEX and IECEx certified.
For more information about the Bopp & Reuther Density Concentration Meter, pricing, or to request a demo, contact our team:
