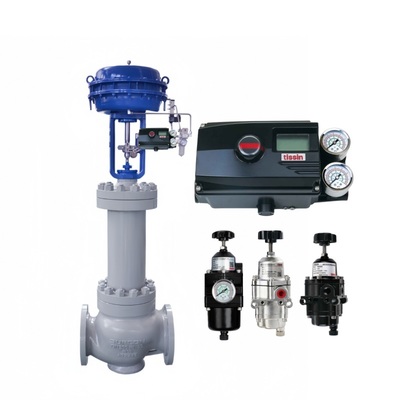

The Tissin TS800 Smart Valve Positioner is a versatile, explosion-proof electro-pneumatic controller for pneumatic actuators in hazardous locations. With optional Ex ia IIC T5/T6 certification and 4-20 mA input, it offers auto-tuning and self-calibration for precise stroke control in linear and rotary valves. The IP66 aluminum housing and low air consumption (0.14–0.7 MPa supply) make it suitable for oil & gas, chemical, and mining environments. Featuring conduit entries for G1/2, NPT1/2, and M20, the TS800 ensures safe, efficient operation with easy field maintenance and compatibility with standard control systems.
| Parameter | Specification |
|---|---|
| Input Signal | 4-20 mA DC (500 Ω impedance) |
| Supply Pressure | 0.14–0.7 MPa (1.4–7 bar) |
| Stroke Range | Linear: 10–150 mm; Rotary: 0–90° |
| Air Connection | PT1/4, NPT1/4 |
| Gauge Connection | PT1/8, NPT1/8 |
| Conduit Entry | G(PF)1/2, NPT1/2, M20 |
| Temperature Range | -20°C to +80°C |
| Explosion Proof | Ex ia IIC T5/T6 (optional) |
| Power Consumption | less than 1 W |
| Weight | 1.5 kg |
Does the TS800 have explosion-proof options?
Yes, Ex ia IIC T5/T6 for hazardous locations.
What is the supply pressure range?
0.14–0.7 MPa for standard operation.
Is it versatile for rotary valves?
Yes, 0–90° range.
How is conduit connected?
G1/2, NPT1/2, or M20 entries.
Is it energy-efficient?
Yes, less than 1 W power use.
Contact our team for inquiries about the Tissin TS800 Smart Valve Positioner, pricing, or to schedule a demo:
