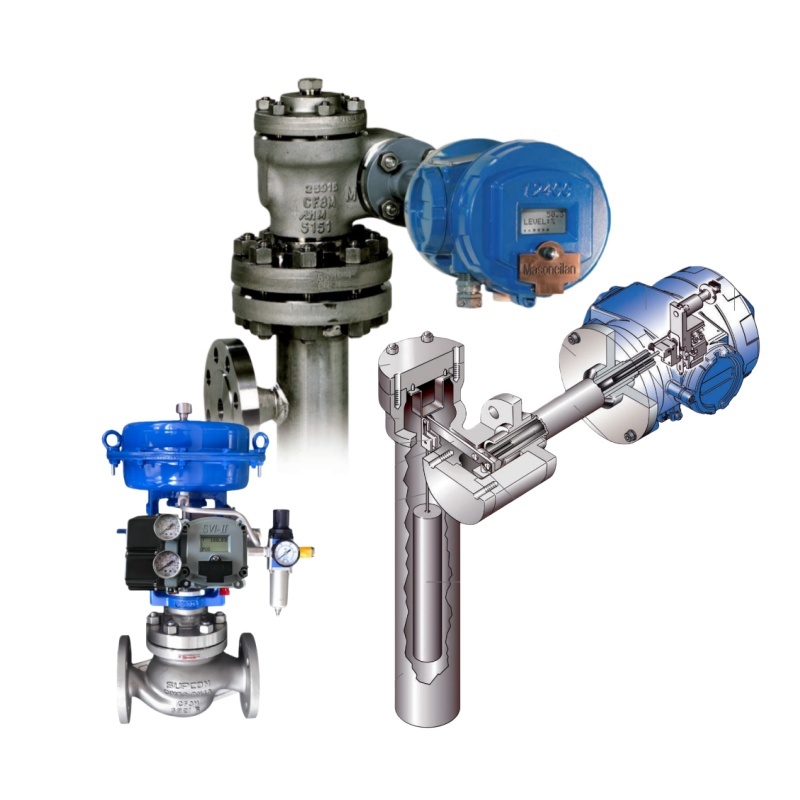

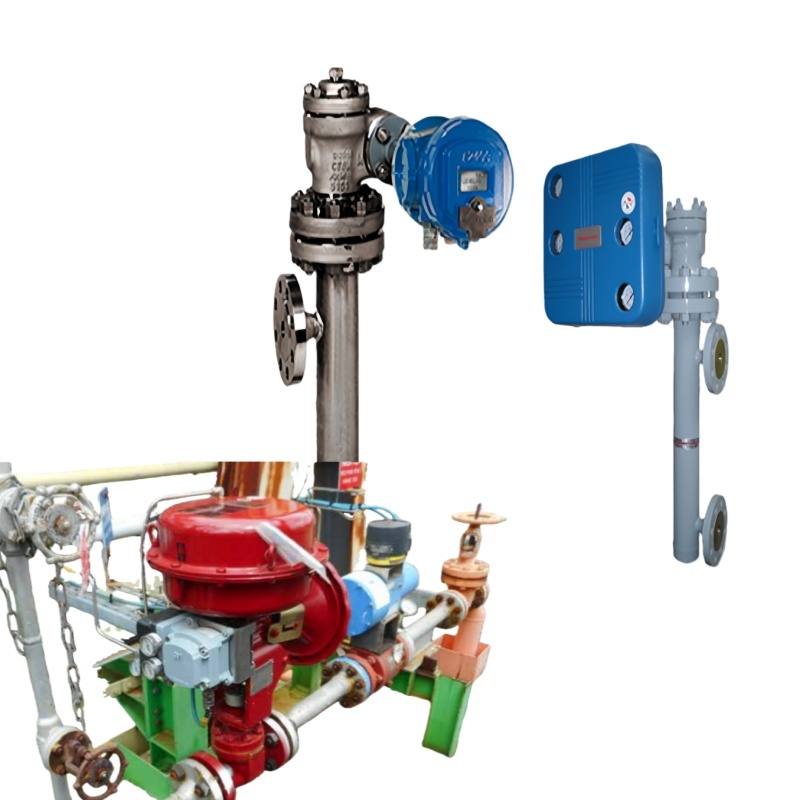

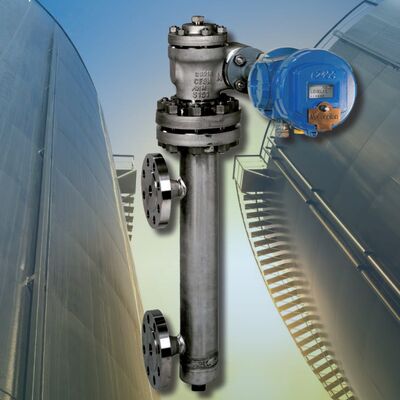

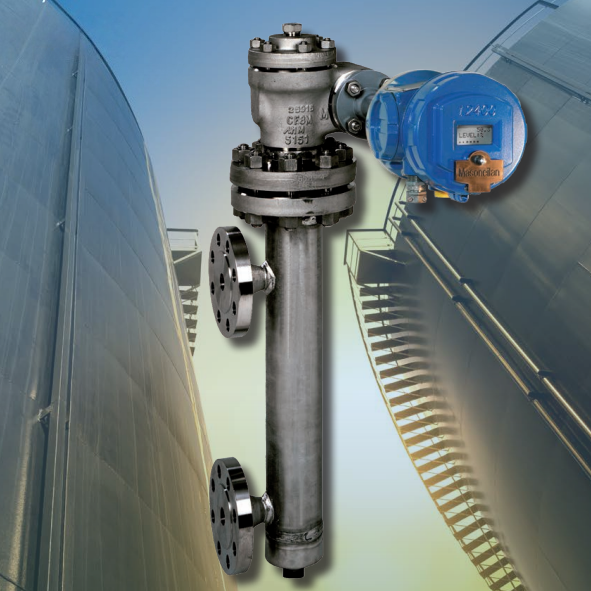

The big blue displacer transmitter you still see on every crude column and FCC fractionator

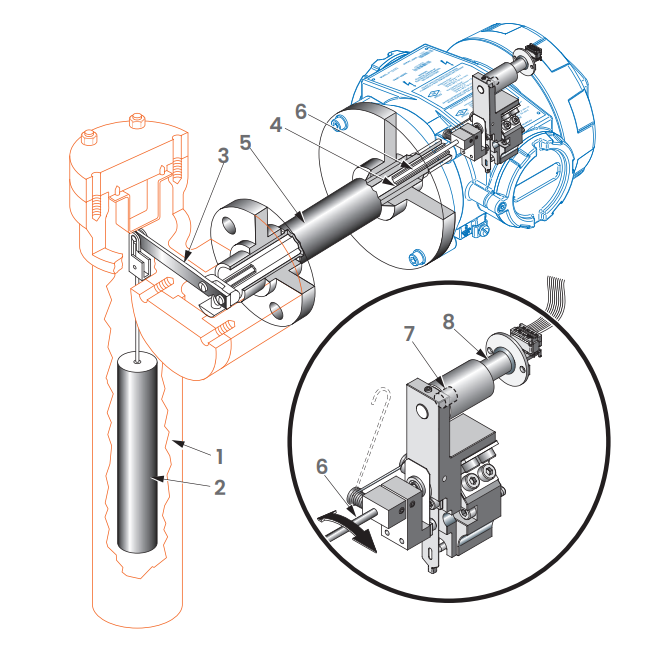

Radar, GWR, magnetostrictive – they all come and go. The 12400 just keeps working. It’s a torque tube displacer with a proper pneumatic or smart HART head, built like a tank, and the only level instrument most old-school operators trust on interface and overall level in hot, dirty, high-pressure service. Plants have been running the same units since the 90s and only replace the displacer every turnaround.
| Range | 356 mm to 3048 mm (14" to 120") |
| Pressure | up to ANSI 2500 / PN400 |
| Temperature | -196 °C to +400 °C |
| Output | 4–20 mA HART or pneumatic 3–15 psi |
| Accuracy | ±0.5% of span typical |
| Materials | Carbon steel, 316L, Hastelloy C, Monel |
Q: Do you still make them?
A: Yes – brand new units ship every month from Conde, France.
Q: Can I replace my old 12200/12300?
A: Direct drop-in, same flange pattern, same torque tube.
