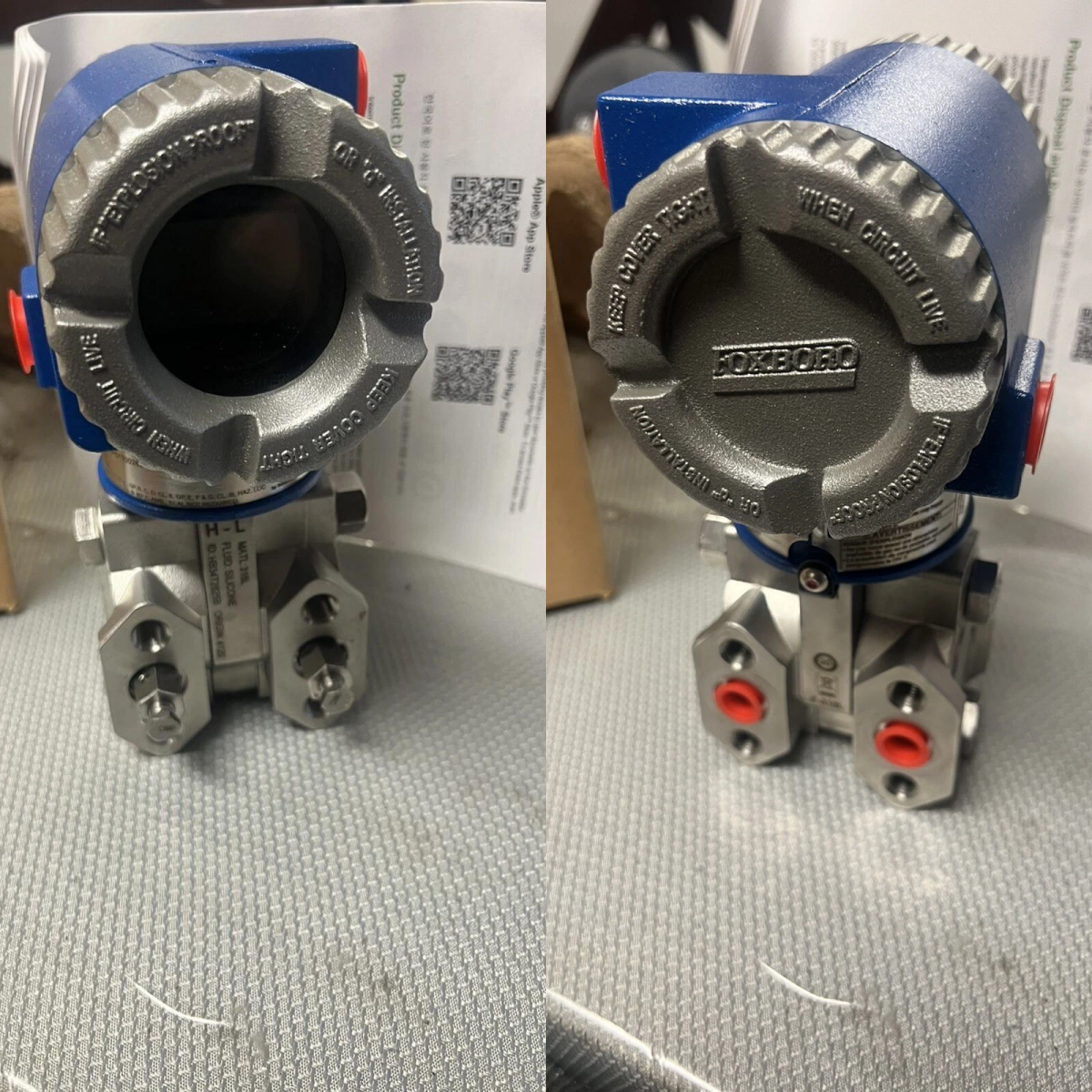

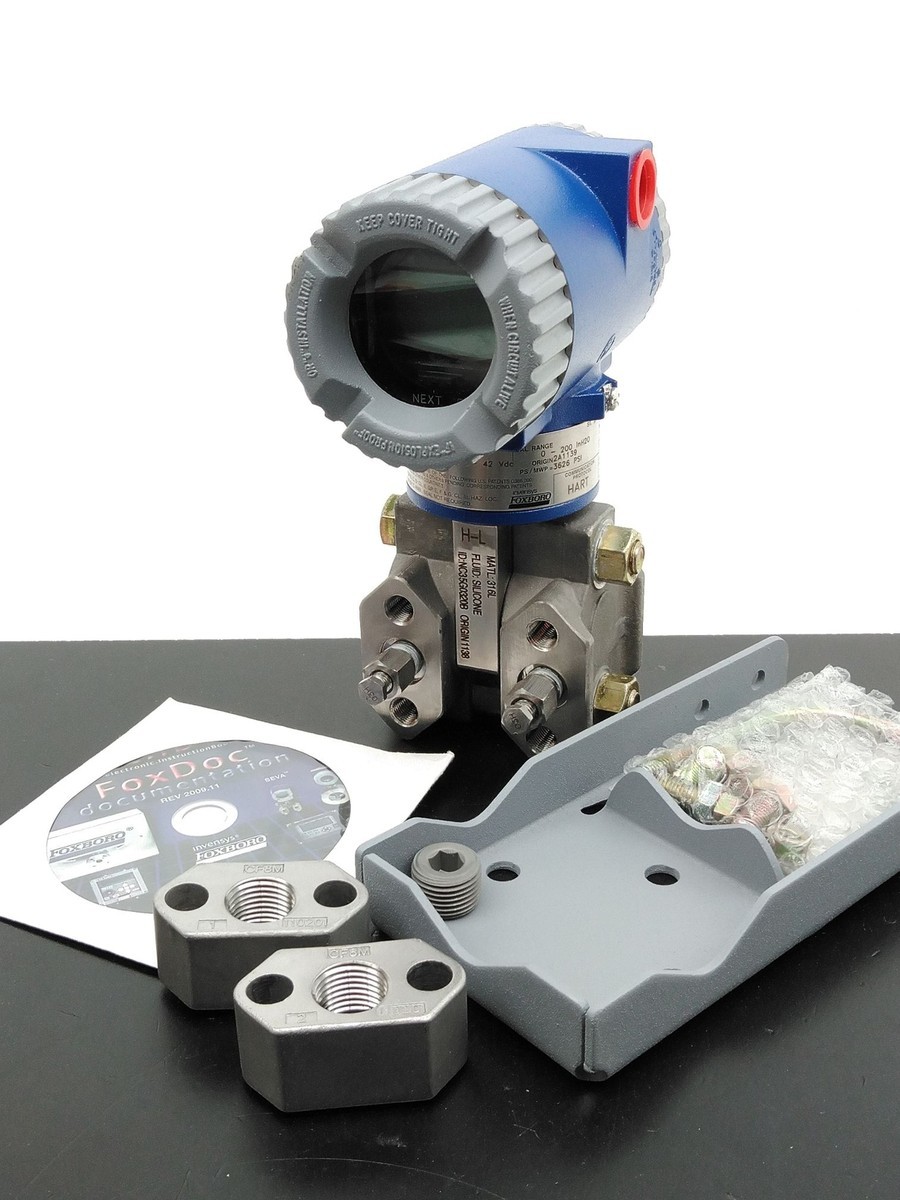

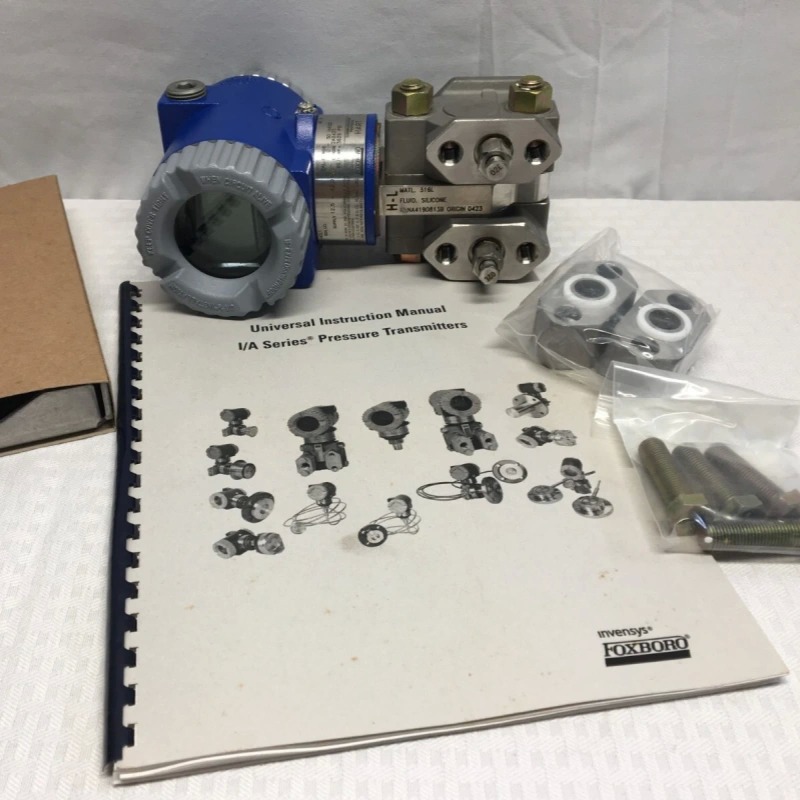

Foxboro IDP10 I/A Series Electronic Differential Pressure Transmitters 4-20mA HART

The Schneider Foxboro I/A Series pressure transmitters, including models IDP10, IDP25, IDP50, and IMV25, are designed for precise and stable pressure, differential pressure, and multivariable measurement in industrial process control systems. These transmitters deliver high accuracy, long-term stability, and advanced diagnostics, making them a trusted choice for oil and gas, chemical, power generation, water treatment, and general industrial applications.

Foxboro I/A Series transmitters are equipped with silicon strain-gauge sensors and microprocessor-based signal processing. They support analog 4 to 20 mA, HART, and FoxCom protocols, allowing seamless integration into existing DCS, PLC, and SCADA systems.

Whether used for differential pressure flow measurement, tank level monitoring, or static pressure sensing, Foxboro transmitters provide robust performance with high reliability in harsh environments.

• High accuracy silicon strain-gauge sensor
• Stable long-term performance with low drift
• 4 to 20 mA analog and optional HART or FoxCom digital communication
• Rugged aluminum or stainless steel housing for harsh environments
• Multiple wetted material options including 316L stainless steel, Hastelloy, Tantalum
• Comprehensive hazardous-area certifications for global use
• Advanced diagnostics for process and device health monitoring
• Wide turn-down ratio for flexible range configuration
• Optional local LCD indicator for field monitoring
• Compatible with remote seals and manifolds
• IP66 and NEMA 4X protection rating for outdoor installations

• IDP10 Electronic differential pressure transmitter for general DP, flow, and level applications
• IDP25 Advanced differential pressure transmitter with improved accuracy and stability
• IDP50 High-performance DP transmitter for demanding and high pressure applications
• IMV25 Multivariable transmitter measuring DP, static pressure, and temperature for mass and energy flow calculations

• Flow measurement using differential pressure across orifice plates, Venturi tubes, and primary elements
• Liquid level measurement in pressurized or sealed vessels
• Static pressure measurement in pipelines or process units
• Filter and pump monitoring in industrial systems
• Steam measurement and energy management using multivariable models
• Chemical, petrochemical, and refinery processes
• Power plant boiler and steam systems
• Water treatment and distribution networks

• Delivers accurate and reliable measurement in critical industrial processes
• Reduces maintenance with robust sensor and electronics
• Easy integration with modern and legacy control systems
• Suitable for corrosive liquids, gases, and harsh outdoor locations
• Long operating life with minimal calibration drift
• Improves process stability and reduces operational cost

Foxboro differential pressure transmitters measure the force difference between the high-pressure and low-pressure ports. This pressure difference deforms a silicon sensor, generating an electrical signal. The internal microprocessor linearizes and temperature-compensates the signal before transmitting it as a stable 4 to 20 mA or digital HART/FoxCom output. Multivariable models combine DP, static pressure, and temperature to compute compensated mass flow.

• What is the difference between IDP10 and IDP25
  IDP25 provides enhanced accuracy and improved stability compared to IDP10.
• Is the I/A Series compatible with HART
  Yes. Most models support HART communication for remote configuration.
• Can Foxboro transmitters be used in hazardous locations
  Yes. They are available with ATEX, IECEx, FM, and CSA certifications.
• What materials are recommended for corrosive applications
  Hastelloy, Monel, or Tantalum wetted parts depending on process compatibility.
• Can these transmitters be used for steam flow
  Yes. With multivariable models like IMV25 or DP with temperature compensation.
