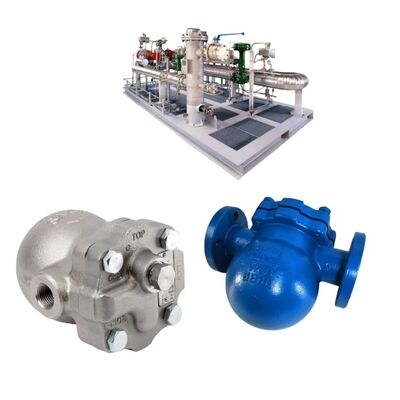

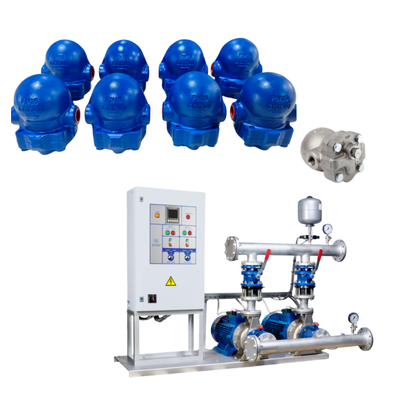

High Quality Flanged Connection SPIRAX SARCO FT14 Screwed Connection FTGS14 Ball Float Steam Trap DN25 to DN50 PN16

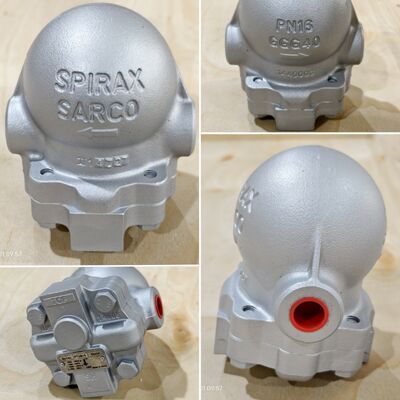

The Spirax Sarco FTGS14 brings enhanced durability with its austenitic stainless steel body (and SG iron cover in some configurations), paired with stainless steel internals and integral automatic air venting. This float & thermostatic trap provides continuous condensate discharge at steam temperature and excels in environments requiring better corrosion resistance.

• Stainless steel body for longer service life and corrosion resistance.
• Integral automatic air vent for effective non-condensable gas removal.
• Low maintenance and minimal downtime thanks to robust construction.
• Dimensionally interchangeable with FT14 for easy replacement.
• Flow direction adjustable on site (horizontal connections).
• Optional integral strainer screen available.
• BP99/32 capsule handles superheat conditions effectively.

Body Material: Austenitic stainless steel (base), with SG iron cover options. Working Internals: Stainless steel. Connection Types: Screwed (BSP T Rp ISO 7-1) or flanged (PN16). Sizes: ½" to 1" (DN15 to DN25). Pressure Ranges: FTGS14-4.5 (4.5 bar ΔPMX), FTGS14-10 (10 bar), FTGS14-14 (14 bar). Maximum Allowable Pressure (PMA): 16 bar g @ 120°C. Maximum Allowable Temperature (TMA): 250°C. Maximum Operating Pressure (PMO): Up to 14.6 bar g for saturated steam. Maximum Operating Temperature (TMO): 250°C @ 13.8 bar g. Air Vent Capsule: BP99/32, suitable for 150°C superheat @ 0 bar g and 50°C superheat @ 32 bar g. Cold Hydraulic Test Pressure: 24 bar g.

Ideal for heat exchangers, separator drainage, rotating drying cylinders, and other process, heating, or mains drainage duties where stainless steel construction adds value.

Q: How does it differ from the FT14? A: It features a stainless steel body for improved corrosion resistance while remaining dimensionally similar.

Q: What superheat can it tolerate? A: Up to 150°C at 0 bar g, or 50°C at 32 bar g with the standard capsule.

Q: Can I add a strainer? A: Yes, an optional integral strainer screen is available.

Q: What are the pressure options? A: Offered in 4.5 bar, 10 bar, and 14 bar maximum differential versions.

Q: Is it compliant with pressure directives? A: Yes, it meets European Pressure Equipment Directive requirements.
