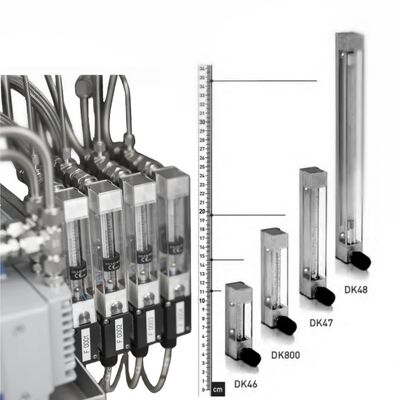

Krohne DK46 DK47 DK48 DK800 Variable Area Flowmeter Gas Liquid Industrial Process Monitoring

The KROHNE DK46/47/48/800 are rugged all-metal variable area flowmeters for liquids and gases. The smaller DK46/47/48 handle low flows, while DK800 covers higher rates. They provide local visual indication and optional switches or transmitters. These rotameters are used where simple, no-power-required flow measurement is preferred in industrial piping.

• All-metal construction – withstands high pressure/temperature
• Mechanical pointer indication
• Optional limit switches or 4–20 mA transmitter
• Float damping for stable reading
• No straight pipe run required
• Low pressure loss
• Corrosion-resistant materials

• Sizes: DN15–DN50 (DK46/47/48); DN15–DN150 (DK800)
• Flow Range: Low flows (DK46/47/48): 1–800 l/h water; DK800: up to 180 m³/h
• Accuracy: ±1.6% to ±4% FS
• Max Pressure: 100 bar (smaller sizes), 40 bar (DK800)
• Max Temperature: +200 °C
• Materials: Stainless steel 1.4404, Hastelloy C-22
• Connections: Flanged, threaded

• Chemical feed lines
• Gas blanketing and purging
• Cooling water flow
• Lubrication oil monitoring
• Low to medium flow measurement
