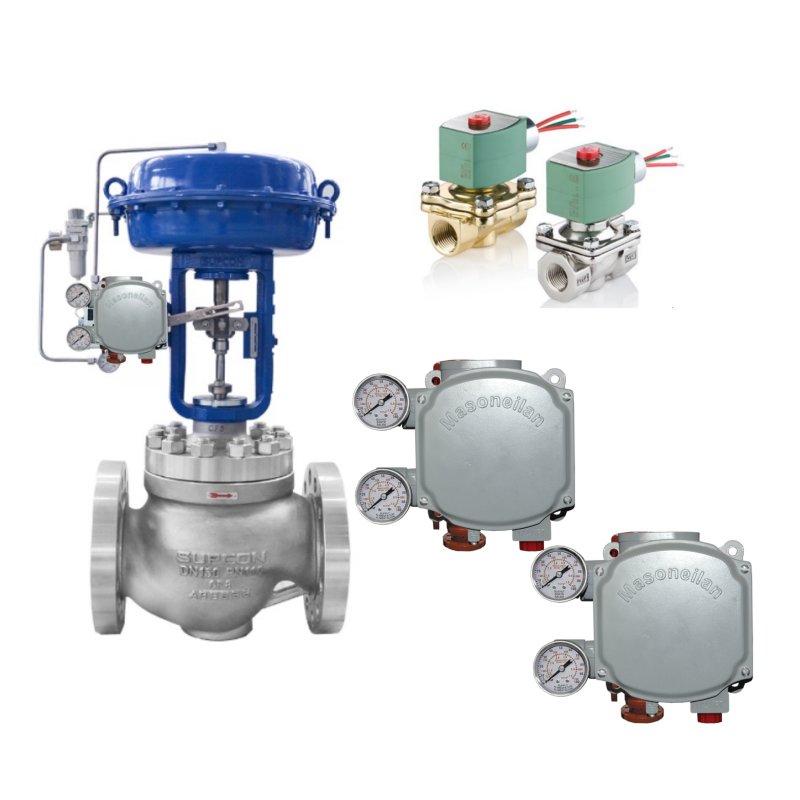

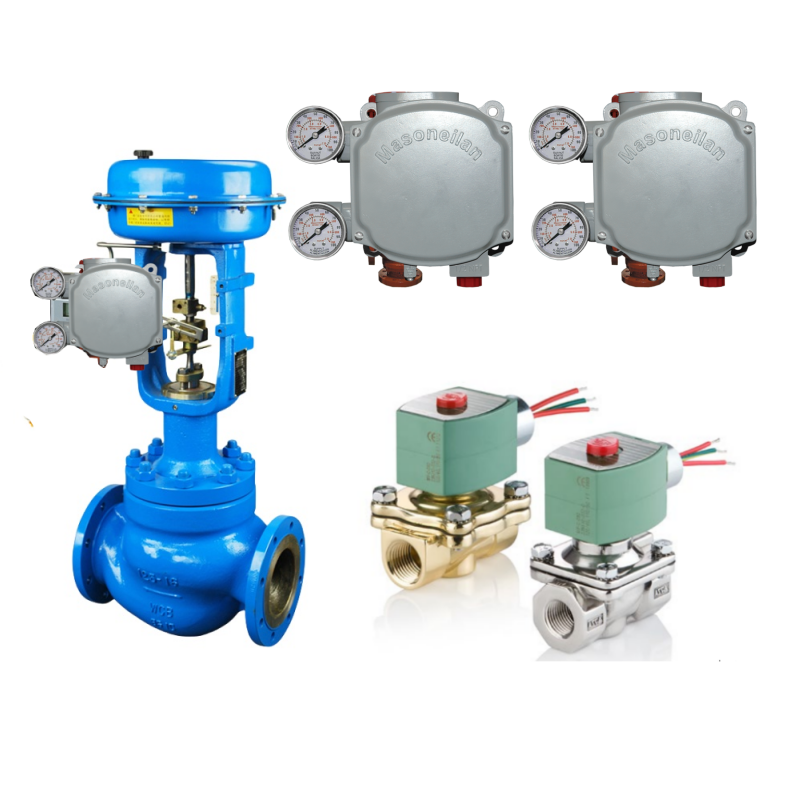

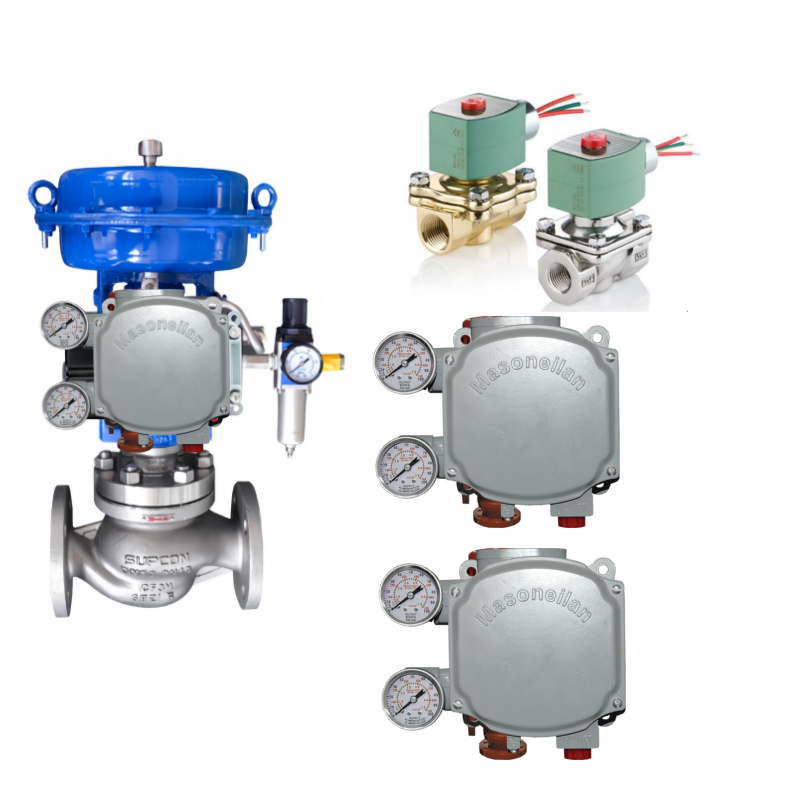

Masoneilan SVI 1000 Intelligent Digital Valve Positioner Equipped with ASCO Solenoid Valves

The Masoneilan SVI1000 is an integrated digital valve positioner, featuring HART protocol for seamless DCS connectivity and diagnostics. Tailored for single-acting pneumatic valves, it uses magnetic technology for accurate positioning and health monitoring. Its metal housing and universal compatibility make it a smart choice for modern control systems, offering system indicators and tests for optimized performance.

• HART 5/7 for integration with DCS, handhelds, and asset software (DD, eDDL, DTM).
• Built-in diagnostics: Cycle counts, step/ramp tests, and health indicators.
• Universal label with multi-approvals (FM, ATEX, IEC, CE) for global use.
• Configurable solid-state switches and 4-20 mA retransmit for feedback.
• Powerful DTM interface for calibration, tuning, and maintenance.
• Intrinsically safe with low power for hazardous integration.

• DCS-integrated petrochemical plants for remote monitoring.
• Pharmaceutical systems with diagnostic needs.
• Power generation for health indicators.
• Oil & gas with HART-enabled controls.
• Automation requiring software integration.

• How does HART integrate? Via DD/eDDL/DTM for DCS like Emerson or Honeywell.
• What diagnostics are available? Cycle counts, step/ramp tests, and indicators for system health.
• Can it retransmit position? Yes, via 4-20 mA output for feedback.
• How to calibrate remotely? Use DTM or handheld for tuning without site visit.
• What if in hazardous areas? Intrinsically safe with universal approvals.
