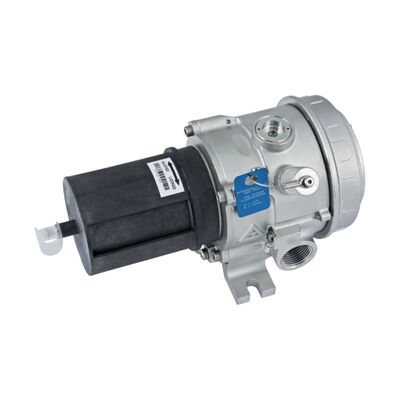

Industrial Safety DET-TRONICS PointWatch Eclipse PIRECL Infrared Gas Detector Hydrocarbon Combustible Gas Detector

PointWatch Eclipse PIRECL is an open-path infrared hydrocarbon gas detector that uses infrared absorption technology to detect flammable gases in the air. It measures the gas concentration over a line-of-sight path (typically 5–60 meters). The detector is designed for hazardous areas and is widely used where fast, reliable detection of methane, propane, ethylene and other hydrocarbons is required without false alarms from poisons or contaminants.

• Open-path detection – covers large area with single unit
• Immune to most poisons and contaminants
• Heated optics – prevents condensation and fogging
• Automatic optical integrity (oi) test – continuous self-check
• FM, CSA, ATEX, IECEx approvals for hazardous locations
• HART communication for diagnostics and setup
• Optional relay and analog output

• Detection Range: 0–5 LFL-m (methane equivalent)
• Path Length: 5 m to 60 m (16 ft to 200 ft) typical
• Response Time: T90 ≤ 3 seconds
• Spectral Region: 3.3 μm hydrocarbon absorption band
• Operating Temperature: –55 °C to +75 °C (–67 °F to +167 °F)
• Supply Voltage: 18–32 Vdc
• Power Consumption: 11.5 W nominal, 23 W max (heated)
• Output: 4–20 mA (HART), optional relays
• Enclosure: Stainless steel or aluminum
• Approvals: FM, CSA, ATEX, IECEx, SIL 2 capable

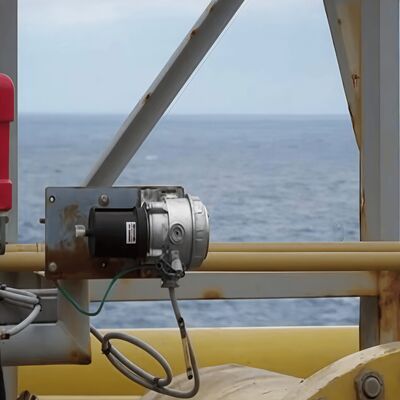

• Offshore platforms and FPSOs
• Refineries and petrochemical plants
• Compressor stations
• LNG terminals
• Open-area flammable gas detection

• PointWatch Eclipse PIRDUCT (ducted version)
• PointWatch Eclipse PIRECL with relay option
• FlexSonic acoustic leak detector
• CGS500 catalytic sensor
