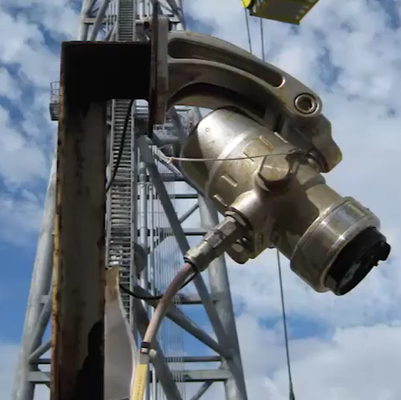

The X3301 is a multispectrum infrared flame detector that uses patented signal processing to detect hydrocarbon fires while rejecting false alarm sources (hot CO₂, welding, sunlight, etc.). It provides very high-speed response and excellent detection range, making it one of the most trusted flame detectors in high-risk oil & gas and petrochemical facilities.
| Parameter | Specification |
|---|---|
| Detection Technology | Multispectrum IR (3 IR bands) |
| Detection Range (n-heptane) | 210 ft (64 m) on axis (1 ft² pan fire) |
| Field of View | 110° horizontal × 75° vertical |
| Response Time | Typically < 0.5 seconds (standard test fires) |
| False Alarm Immunity | High (welding, hot CO₂, sunlight, heaters, etc.) |
| Operating Temperature | –55 °C to +75 °C (–67 °F to +167 °F) |
| Supply Voltage | 24 Vdc nominal (18–32 Vdc) |
| Power Consumption | 14 W nominal, 17 W max |
| Output | Relays, 4–20 mA, HART, Modbus (optional) |
| Approvals | FM, CSA, ATEX, IECEx, SIL 2 capable |
| Enclosure | Stainless steel or aluminum |
| IP Rating | IP66 / NEMA 4X |
