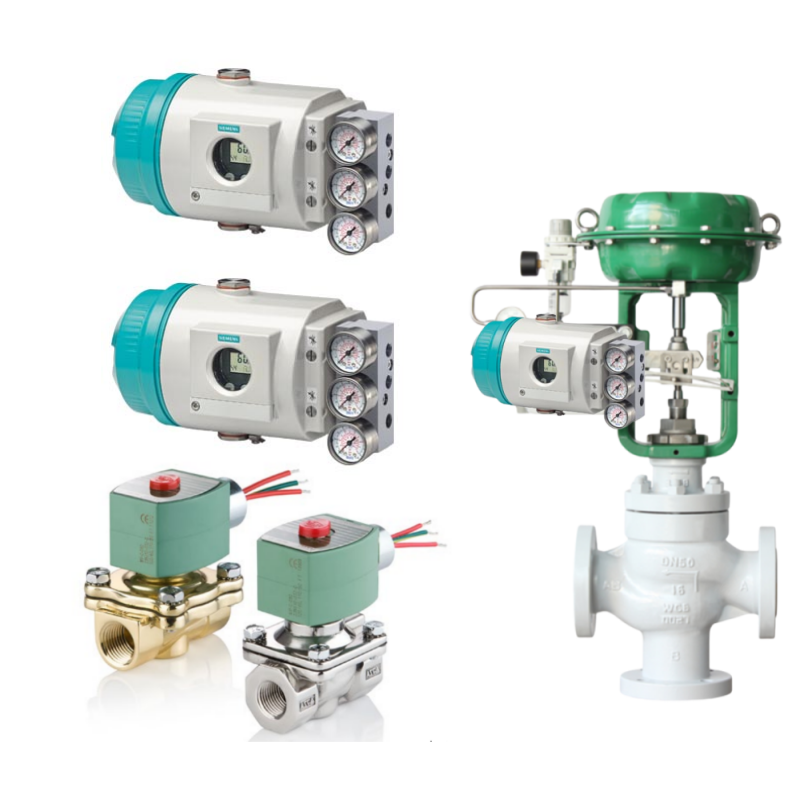

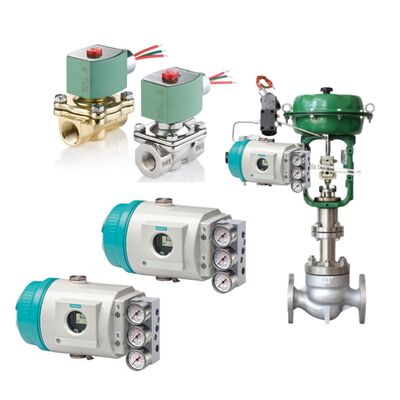

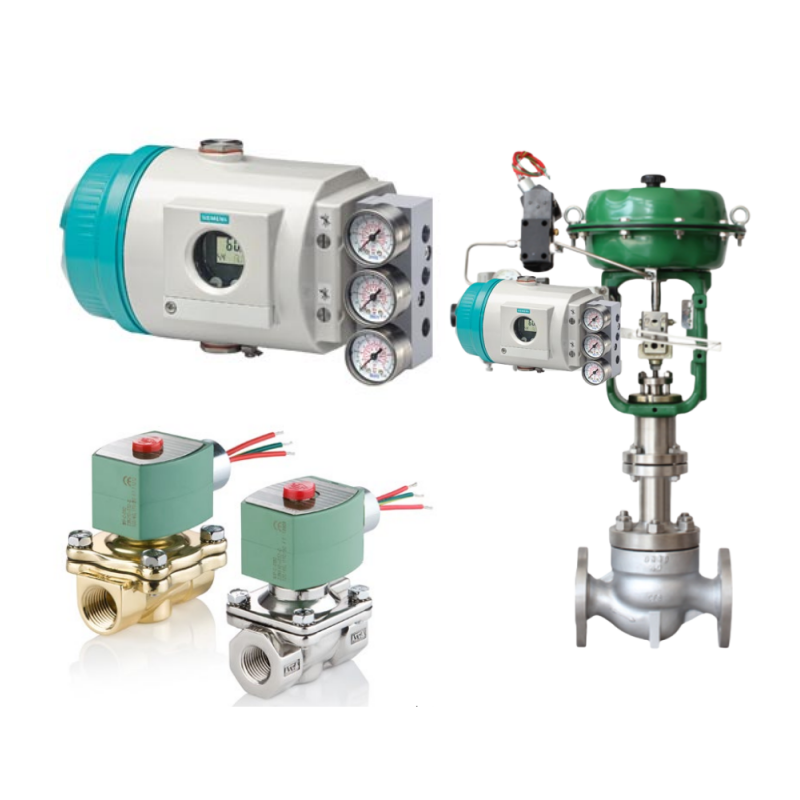

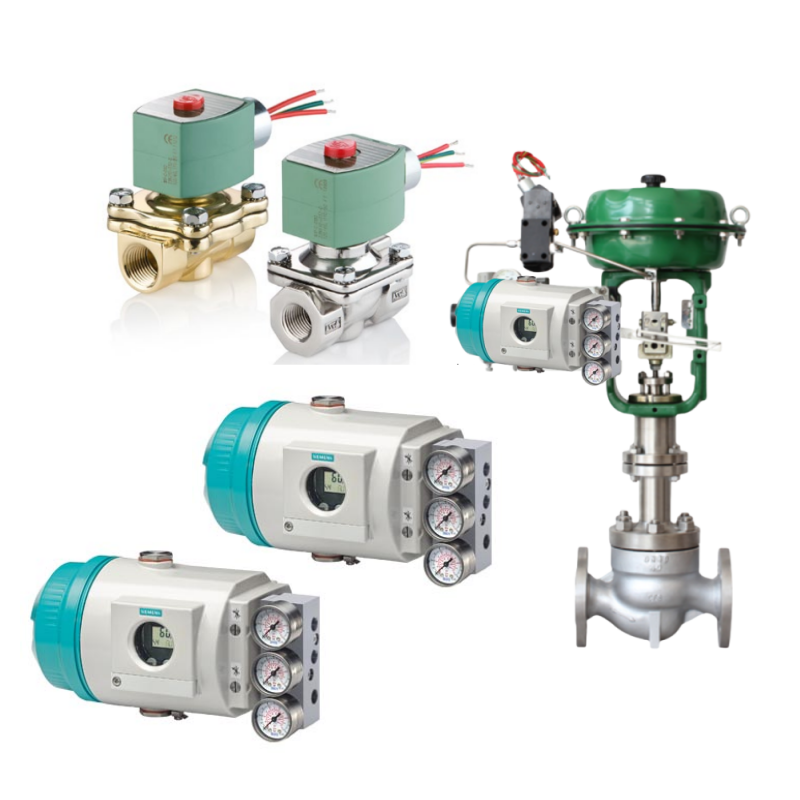

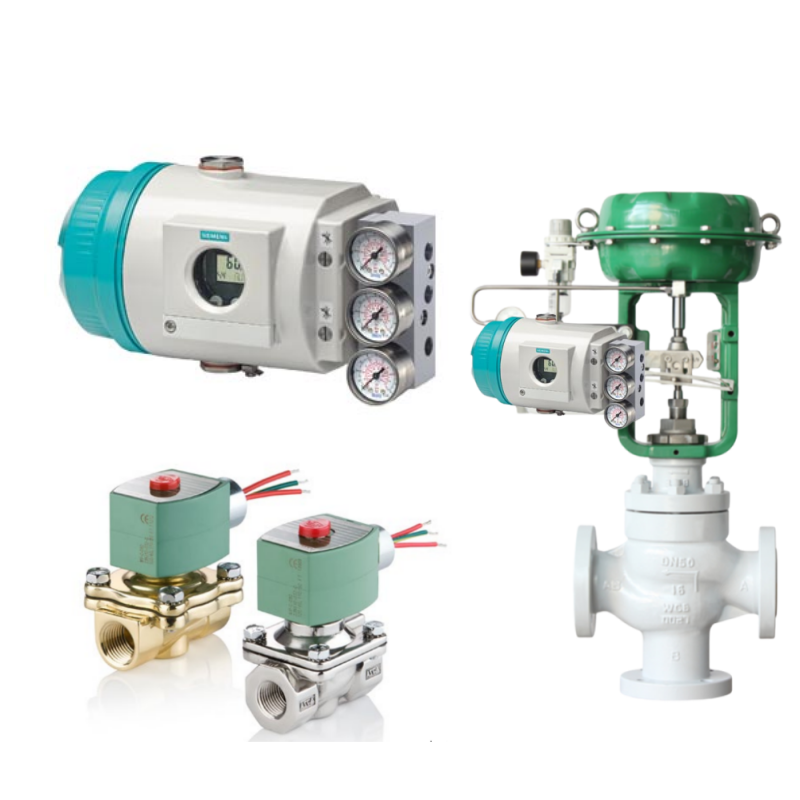

The 6DR5125-0EG01-0AA2 is a premium HART-enabled SIPART PS2 positioner built for Industry 4.0-ready plants. Its aluminum housing and advanced electronics deliver precise, repeatable valve positioning while providing real-time valve health insights through extensive onboard diagnostics.
| Parameter | Value |
|---|---|
| Input signal | 4–20 mA HART (load voltage typ. 6.6 V) |
| Enclosure | Aluminum, single-acting |
| Position feedback | Potentiometer or non-contacting sensor (NCS) |
| Stroke / rotation range | 3–130 mm / 30–100° |
| Supply air | 1.4–7 bar, ISO 8573-1 Class 3 quality |
| Ambient temperature | –30 °C … +80 °C |
| Protection rating | IP66 / NEMA 4X |
| Air consumption (controlled) | < 0.036 Nm³/h |
| Weight (approx.) | 1.3 kg |
| Certificates | SIL 2, ATEX/IECEx, PED, UL |
Used globally in oil & gas pipelines, chemical processing, power generation, wastewater treatment, and food/pharma facilities requiring high availability and low maintenance.
Q: Does it support split-range operation?
A: Yes — configurable start and end values via HART or local display.
Q: How often should I run the Valve Performance Test?
A: Recommended quarterly for critical valves; data stored for trend analysis.
Q: Is Bluetooth connectivity available?
A: Yes — via optional Mobile IQ app for convenient configuration.
